We must have the REST in our blog, it will attract a lot of investors

The last time we saw how to make basic CRUD functionalities for the blog. That was quite a long time, because I started to encounter some rough edges that make Scala and T5 don't go together as smoothly as expected. Nevertheless, all problems were worked around.

This article is about how simply one can customized the output format of her URL in a RESTful way (see that for more details about REST, but whatever says this too academic article, we all well know that "REST" means "pretty shiny URLs" and "being 2.0, not like whose outdated web service" ;).

So, basically, what we will provide is two different ways of viewing an article:

A standard, HTML view with this kind of URLs: http://localhost:8080/blog/article/view/1

An XML or JSON output, with this kind of URLs: http://localhost:8080/blog/article/view:xml/1 or blog/article/view:json/1


<article title="First article" id="1">
    <published>true</published>
    <content>Content for the first article</content>
    <creationDate>2009-03-24 16:16:31.865 CET</creationDate>
</article>

And:


{"article": {
  "@published": "true",
  "@title": "First article",
  "@id": "1",
  "content": "Content for the first article",
  "creationDate": "2009-03-24 16:16:31.865 CET"
}}

The "view article" page

The first step here is to build a page that will show an article based on it's id.
We want that an URL like: http://localhost:8080/blog/article/view/1

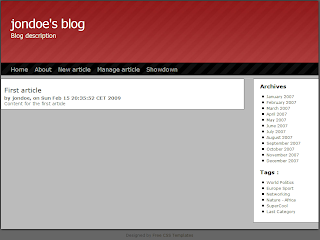

Return the page:

For that, we add a ViewArticle class and ViewArticle template in the package "org.example.blog.pages.article".

The template is trivial, we simply display meaningful information of a backed article object:
org.example.blog.pages.article.ViewArticle.tml

<t:layout xmlns:t="http://tapestry.apache.org/schema/tapestry_5_0_0.xsd">

 <h2>${article.title}</h2>
 <h4>by ${authorname}, on ${article.creationDate}</h4>

 <div>
  ${article.content}
 </div>

</t:layout>

And that's all.

The Scala class is not much more complicated:
org.example.blog.pages.article.ViewArticle.scala

class ViewArticle {

  @Inject
  var articleDao : ReadDao[Article,String] = _

  @Inject
  var conf : BlogConfiguration = _

  @Property
  var article : Article = _

  var id : String = _

  def onActivate(id:String) { this.id = id }

  def getAuthorName() = this.conf.getAuthor.getLogin

  def setupRender {
    this.article = this.get(id)
  }

  private def get(id:String) =
    if(null == id ) NoneArticle
    else this.articleDao.get(id).getOrElse(NoneArticle)
}

We see that I use two services, the Article DAO that allows to retrieve article from their store, and the blog's configuration that is used to display to author name: the article object it accessible from the template because of the @Property annotation (this T5 annotation is in fact the same as the Scala @BeanProperty one, it generates the pair of getter/setter for the attribute), getAuthorName() is called in the template by ${authorname}.

The logic of the page is almost inexistent: when the page is activated (what means an HTTP request is handled by that page), we store the "id" parameter (in our example, it's "1") for when the page is rendered. There is more about Tapestry 5 page activation and parameters here.
When the page is rendered, we ask the article DAO to retrieve the article with the given ID. If none is found, or if the given id was null (no parameter was found in the URL), we used a special "NoneArticle" object for the rendering. This object is a placeholder that stands for "null" for article type, and is defined as follow:

org.example.blog.data.Article.scala

object NoneArticle extends Article(None) {
  creationDate = new Date(0L);
  title = "No such article"
}

And with that, the HTML view is over.

Marshalling article

Here we deal with the transformation of article object into XML or Json, and how we make a service for that task available in our blog.

XStream, the swiss-knife of serialization

Well, in fact I will confess something: I did almost nothing to make the other two output renderings works, it's basically only the mapping of an XStream output to some Tapestry 5 event handlers.

If you don't already know XStream, stop reading here, and just go and look for its 2 minutes tutorial - it's actually a two minutes thing to read and shows how powerful Xstream is.

For the lazy clicker, there's a summary: XStream is an amazing XML and JSON marshalling and unmarshalling library for Java. It's fast, it's powerful, it's broadly used with all the good that that carries, and its learning curve is counted in seconds.

Basically, without any configuration, you can use it like that:


Person joe = new Person("Joe", "Walnes");
XStream xstream = new XStream();
String xml = xstream.toXML(joe);

And it will output something like that:

<org.foo.domain.person>
  <firstname>Joe</firstname>
  <lastname>Walnes</lastname>
</org.foo.domain.person>

With one more config line for the Xstream object:

xstream.alias("person", Person.class);

You get a prettier output:

<person>
  <firstname>Joe</firstname>
  <lastname>Walnes</lastname>
</person>

Doesn't it look simple? And if I say that it also works for JSON output, and also in the reverse way (from JSON/XML to Object), that output customization is almost infinite, you're likely to fall in love with this little, cute library.

Marshalling services for our blog

In the pages, we only need a simple service that transform object to a String representation. As always, we define an interface for that service:

org.example.blog.services.Marshaller.scala

trait Marshaller {
   def to(o:Any) : String
}

Next, we are going to build two implementation for that service, one for XML output and one other for the JSON output. The two of them will extend a common Xstream based Marshaller:

org.example.blog.services.impl.XstreamMarshaller.scala

class XstreamMarshaller(val xstream:XStream) extends Marshaller  {
  override def to(o : Any) = this.xstream.toXML(o)
}

class XmlXstreamMarshaller() extends XstreamMarshaller(new XStream(new DomDriver()))

class JsonXstreamMarshaller() extends XstreamMarshaller(new XStream(new JsonHierarchicalStreamDriver()))

There is only one step remaining to enable the service in our blog: binding interface and implementation in the Tapestry module definition:
org.example.blog.services.AppModule.scala

object AppModule {
  //bind is a conventionnal method name for binding interface and implementation when no special configuration is needed
  def bind(binder : ServiceBinder) {
    binder.bind[Marshaller](classOf[Marshaller],classOf[impl.XmlXstreamMarshaller]) withId "xmlMarshaller"
    binder.bind[Marshaller](classOf[Marshaller],classOf[impl.JsonXstreamMarshaller]) withId "jsonMarshaller"
  }

Note that we assign a name (an Id) to each marshaller. That's because we now have two implementations for a given interface declared in the IoC registry. Tapestry 5 will not be able to know automatically what we really want to use when we will require a service injection for that interface, and so we will have to precise the name of the actual service we really want.

An now, let's use these marshallers to render JSONinfied and XMLified articles.

Binding URL to marshaller output

This second part aims to produce the correct output based on the URL.

T5 event handling system

Again, I did nothing special to bind URL and XML/JSON output since I used the standard Tapestry 5 event system: Url with ":" after a component or page name are interpreted as "component:eventname/eventparams".

For example, http://localhost:8080/blog/article/view:xml/1 means: throws the "xml" event on page "article", with the "1" parameter.

For our use case, the only thing to do is to handle "Xml" and "Json" events in the Scala back end of the "Article/View" page. Like most of the time in Tapestry 5, these event handlers are based on convention, and here the convention is to use "onEVENT" for the method name, where "EVENT" is the name of the event to handle.

The modified ViewArticle class looks like:

org.example.blog.pages.article.ViewArticle.scala

class ViewArticle {

  @Inject
  var articleDao : ReadDao[Article,String] = _

  @Inject
  var conf : BlogConfiguration = _

  @Inject @Service("xmlMarshaller")
  var xmlMarshaller : Marshaller = _

  @Inject @Service("jsonMarshaller")
  var jsonMarshaller : Marshaller = _

  @Property
  var article : Article = _

  var id : String = _

  def onActivate(id:String) { this.id = id }

  def getAuthorName() = this.conf.getAuthor.getLogin

  def setupRender {
    this.article = this.get(id)
  }

  def onXml = new TextStreamResponse("text/xml",this.xmlMarshaller.to(NoneArticle))
  def onJson = new TextStreamResponse("text/plain",this.jsonMarshaller.to(NoneArticle))

  def onXml(id:String) = {
    new TextStreamResponse("text/xml",this.xmlMarshaller.to(this.get(id)))
  }

  def onJson(id:String) = {
    new TextStreamResponse("text/plain",this.jsonMarshaller.to(this.get(id)))
  }

  private def get(id:String) =
    if(null == id ) NoneArticle
    else this.articleDao.get(id).getOrElse(NoneArticle)
}

Compared to the first version, we just injected two marshallers and used them in event handlers. I set-up specific handlers for the case when no parameter is given in the URL.

Note that we solved the injection ambiguity problem on "Marshaller" injection by naming the service we really want to be injected thanks to the "@Service("name")" annotation after the @Inject one.

The only other remarkable thing is the TextStreamResponse object, that allows to return arbitrary text output for rendering. It's an implementation of the StreamResponse interface, that allows to return arbitrary content - yes, returning a PDF for a given URL is a matter of returning the correct StreamResponse in a handler method. Simple, no ?

With that, we have a first promising result.

http://localhost:8080/blog/article/view:xml/1 leads to:

<org.example.blog.data.Article>
  <published>true</published>
  <comments class="scala.Nil$"/>
  <content>Content for the first article</content>
  <title>First article</title>
  <creationDate>2009-03-25 14:19:41.940 CET</creationDate>
  <id class="scala.Some">
    <x class="string">1</x>
  </id>
</org.example.blog.data.Article>

And http://localhost:8080/blog/article/view:json/1 leads to:

{"org.example.blog.data.Article": {
  "published": true,
  "comments": {
    "@class": "scala.Nil$"
  },
  "content": "Content for the first article",
  "title": "First article",
  "creationDate": "2009-03-25 14:19:41.940 CET",
  "id": {
    "@class": "scala.Some",
    "x": {
      "@class": "string",
      "$": "1"
    }
  }
}}

And non existing article or no parameter, like in http://localhost:8080/blog/article/view:xml/foobar leads to:

<org.example.blog.data.NoneArticle_->
  <published>false</published>
  <comments class="scala.Nil$"/>
  <content/>
  <title>No such article</title>
  <creationDate>1970-01-01 01:00:00.0 CET</creationDate>
  <id class="scala.None$"/>
</org.example.blog.data.NoneArticle_->

That's not too bad for a couple of line of code, but output should be nicer.

Configuring output

Actually, we don't want to show the qualified class name in the output, nor we need the comments here, and it will be cool to have "id" and "title" as attributes of the "article" node.

For that, we will customized Xstream marshaller.

The first step is to change the marshaller implementation registration in AppModule to a more configurable one:

org.example.blog.services.AppModule.scala

  def bind(binder : ServiceBinder) {
    //remove marshaller from here
  }

  def buildXmlMarshaller(): Marshaller = {
    val m = new XmlXstreamMarshaller
    ConfigureArticle4Xstream.configure(m.xstream)
    m
  }

  def buildJsonMarshaller(): Marshaller = {
    val m = new JsonXstreamMarshaller
    ConfigureArticle4Xstream.configure(m.xstream)
    m
  }

These new definition also build two marshallers, named "XmlMarshaller" and "JsonMarshaller", but with that way we are able to configure the Xstream instance of each implementation.
Since our case is really simple, the two configurations are the same, and look like that:

org.example.blog.services.impl.XstreamMarshaller.scala

object ConfigureArticle4Xstream {
  def configure(x:XStream) {
    import org.example.blog.data.{Article,NoneArticle}
    //output "article" in place of org.example.blog.data.Article
    x.alias("article",classOf[Article])

    //title and id will be output as attributes of article...
    x.useAttributeFor(classOf[Article],"title")
    x.useAttributeFor(classOf[Article],"id")

    //...and since Id is not a simple string, we have to provide a converter to make it works
    x.registerLocalConverter(classOf[Article],"id",new ArticleIdConverter())

    //we don't want to display comments
    x.omitField(classOf[Article],"comments")

    //special config for NoneArticle
    x.alias("article",NoneArticle.getClass)
  }
}

Each line provides the commented explanation.
The id converter simply output the id if available, or "none":
org.example.blog.services.impl.XstreamMarshaller.scala

class ArticleIdConverter extends SingleValueConverter {
  def fromString(s:String) = if("none" == s) None else Some(s)
  def toString(a:Object) = a match {
    case None => "none"
    case Some(x) => x.toString
    case _ => error("Not supported type: " + a.getClass.getName)
  }
  def canConvert(c:Class[_]) = {
    if(c == classOf[scala.Option[_]]) true
    else false
  }
}

With this configuration, outputs are much nicer:

http://localhost:8080/blog/article/view:xml/1 leads to:

<article title="First article" id="1">
  <published>true</published>
  <content>Content for the first article</content>
  <creationDate>2009-03-25 15:09:20.476 CET</creationDate>
</article>

And http://localhost:8080/blog/article/view:json/1 leads to:

{"article": {
  "@title": "First article",
  "@id": "1",
  "published": true,
  "content": "Content for the first article",
  "creationDate": "2009-03-25 15:09:20.476 CET"
}}

And non existing article or no parameter, like in http://localhost:8080/blog/article/view:xml/foobar leads to:

{"article": {
  "@title": "No such article",
  "@id": "none",
  "published": false,
  "content": "",
  "creationDate": "1970-01-01 01:00:00.0 CET"
}}

Now, we can say too our chief that he can go and look for investor, our blog has the REST (well, almost ;).
And that's all for today !

Next time

We reach a rather satisfying result with really few lines of code, but I have to say that our implementation is bad.

The main reason for that is that there is a bunch of coupling and code duplication at the moment:
- from the page designer point of vue, it's crappy to have to inject several marshallers, and choose the correct one for each event;
- moreover, addind a new output (for example, plain text) would mean modifying *all* pages that use marshallers;
- with the actual configuration, each time that we want to customize an output for a given object, we have to actually modify the code of XstreamMarshaller core implementation, or in the core module definition !

So the next time, we will see how we can improve these points. And again, it will be easy, thanks to Tapestry IoC provided features.

As always, the real full code is available at Github at this tag :
http://github.com/fanf/scala-t5-blog/tree/article4_20090325

[Update: in the next paragraph, "showstopper" is clearly too strong - put it in my bad english level. The title is perhaps better, I wanted to say that things didn't came along as well as I hoped initially. In no case I wanted to sound over-pessimistic. Actually, the workaround is rather simple : I can use a direct call to the look-up service of T5 IOC each time I need a named service in place of the direct injection of that service.]

In my quest of using Tapestry 5 with a Scala back-end, I believe I fall on a showstopper. I seems that Javassist doesn't see annotation on method parameter in Scala object, although the annotation (being marked with Runtime retention) is seen with the Java reflexion API.

I tested with both Scala 2.7.3 and 2.8.0-nigtly, and both Javassist 3.9.0.GA and 3.10 - the behaviour is consistent in all combinations.

In fact, what seems to happens is that when one defines a Scala object "Foo.scala", scalac generates two classes : "Foo.class" that is a kind of singleton facade and initializer, and "Foo$.class" that is the actual class.

When the java reflexion API is used, I think that scala delegates the call in the rigth way. The problem seems to be that Javassist directly read the bytecode of "Foo.class", and doesn't see the annotation - it seems to be only on the method in "Foo$.class".

You can you see this behaviour like that:

Make a simple Java annotation, and compile it, something like @InjectService in Tapestry5-annotation package:


@Target({PARAMETER, FIELD})
@Retention(RUNTIME)
@Documented
public @interface InjectService
{
    String value();
}

Create a scala class that make use of that annotation and test it visibility thanks to Java reflexion API and Javassist :


import org.apache.tapestry5.ioc.annotations.InjectService
import javassist._
import javassist.runtime._


object ObjectTestAnnotation {
  def methodWithParamAnnot(@InjectService("service id") s:String) = s
}

class ClassTestAnnotation {
  def methodWithParamAnnot(@InjectService("service id") s:String) = s
}

object Main {

  def main(args: Array[String]) {
    /*
     * Using Java reflexion API
     */
    val methodWithParamAnnot = ObjectTestAnnotation.
      getClass.getMethod("methodWithParamAnnot", classOf[String])
    val annotations = methodWithParamAnnot.getParameterAnnotations
    println("* with java reflexion API, on ObjectTestAnnotation")
    annotations.foreach(_.foreach( x => println(x)))
    // print:
    // * with java reflexion API, on ObjectTestAnnotation
    // @org.apache.tapestry5.ioc.annotations.InjectService(value=service id)

    val methodWithParamAnnot1 = classOf[ClassTestAnnotation].
      getMethod("methodWithParamAnnot", classOf[String])
    val annotations1 = methodWithParamAnnot1.getParameterAnnotations
    println("* with java reflexion API, on ClassTestAnnotation")
    annotations1.foreach(_.foreach( x => println(x)))
    // print:
    // * with java reflexion API, on ClassTestAnnotation
    // @org.apache.tapestry5.ioc.annotations.InjectService(value=service id)

    /*
     * Using Javassist
     */
    val cp = ClassPool.getDefault()
    val ctString = cp.get("java.lang.String")
    val methodWithParamAnnot2  = cp.get("test.ObjectTestAnnotation")
      .getDeclaredMethod("methodWithParamAnnot",Array(ctString))
    val annotations2 =  methodWithParamAnnot2.getParameterAnnotations
    println("* with javassist, on ObjectTestAnnotation")
    annotations2.foreach(_.foreach( x => println(x)))

    // print (AND THAT'S BAD, the annotation is not seen !)

    // * with javassist, on ObjectTestAnnotation

    val methodWithParamAnnot2_bis  = cp.get("test.ObjectTestAnnotation$")
      .getDeclaredMethod("methodWithParamAnnot",Array(ctString))
    val annotations2_bis =  methodWithParamAnnot2_bis.getParameterAnnotations
    println("* with javassist, on ObjectTestAnnotation$")
    annotations2_bis.foreach(_.foreach( x => println(x)))
    // print:
    // * with javassist, on ObjectTestAnnotation$
    // @org.apache.tapestry5.ioc.annotations.InjectService(value="service id")


    val methodWithParamAnnot3  = cp.get("test.ClassTestAnnotation")
      .getDeclaredMethod("methodWithParamAnnot",Array(ctString))
    val annotations3 =  methodWithParamAnnot3.getParameterAnnotations
    println("* with javassist, on ClassTestAnnotation")
    annotations3.foreach(_.foreach( x => println(x)))
    // print:
    // * with javassist, on ClassTestAnnotation
    // @org.apache.tapestry5.ioc.annotations.InjectService(value="service id")

    println("done")


  }

}

Cry ! Because, of course, Tapestry 5 uses these annotations in such a way that a bug here make the whole thing unusable - the core of T5-IOC container relies on them.
I would have to see if I can use a class in place of the object...

Fanf's blog

Wednesday, March 25, 2009

Tapestry 5 - Scala : view article in HTML, JSON or XML

We must have the REST in our blog, it will attract a lot of investors

The "view article" page

Marshalling article

XStream, the swiss-knife of serialization

Marshalling services for our blog

Binding URL to marshaller output

T5 event handling system

Configuring output

Next time

Monday, March 16, 2009

Java annotation, scala object and javassist don't get along well

Tuesday, March 3, 2009

Small UTF-8 URL

About Me

Archives

Categories

stat
